DIY Vocal Booth PREMIUM, Metal frame Kit – 150x200cm (sound blankets are sold separately)

30 days to return the goods
DHL shipping time is usually 4-6 days, for tracking you will get a tracking number.
Price
298,50 £ incl. VAT

Manufacturer

Product code
101048

In stock (same day shipping) - If you order in any working day till 11am we will send your order in same day
package

VocalBoothToGo - DIY Vocal Booth PREMIUM, Frame Kit - 150x200 cm, metal thin walled tubes, metal connectors.
We also sell the complete vocal booth with roofs. Click on the link: HEREThanks to this pre-made frame structure you can build VocalBooth (mobile recording studio) for recording voiceovers, singing, dubbing, audio books, musical instruments, etc... Even in your studio apartment. More

We also sell the complete vocal booth with roofs. Click on the link: HERE

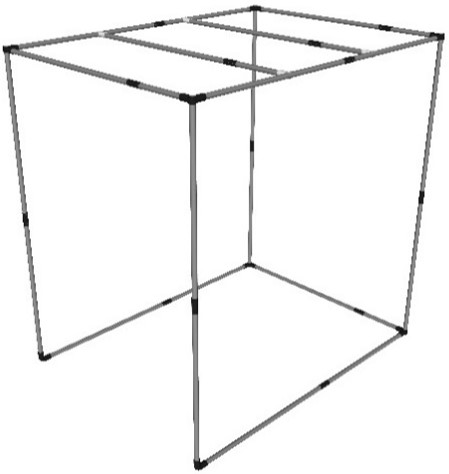

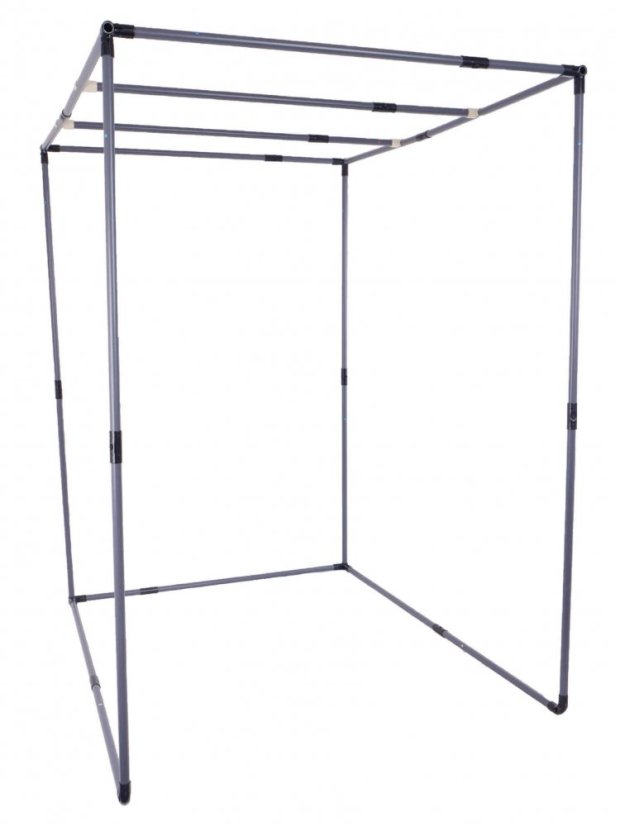

booth-frame

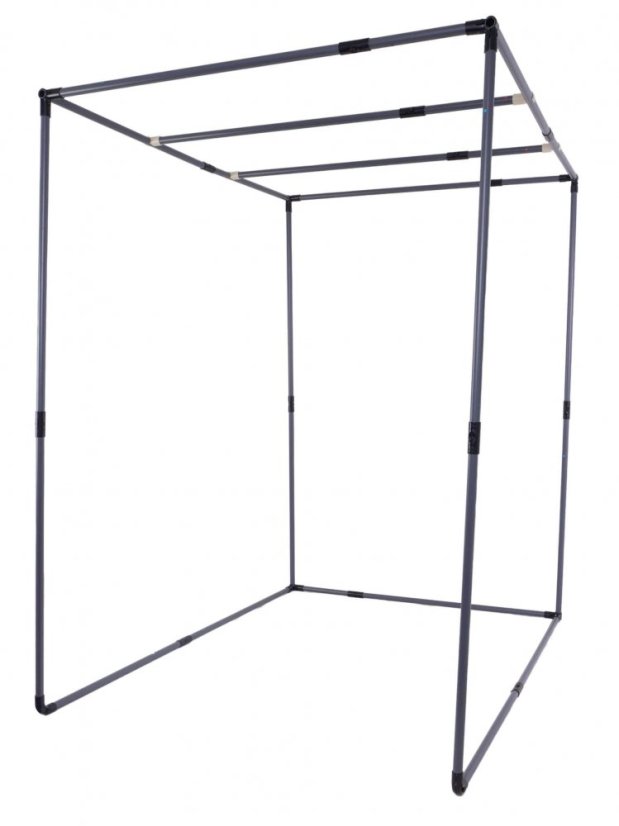

This completely pre-made mobile VocalBooth (sound booth) frame set made from pipes and connected by metal couplings, you can assemble in 10 minutes and, if necessary, you can just as quickly disassemble it and put it away in a corner or take it with you wherever you need to go. The longest pipes in the package are only 100 cm long and are again connected to the longer ones with metal couplings.

Assembling

P1120356The used uniform size of the screws will make it easy to assemble the entire structure - you only need one Hex key, which is included in the package and you can start assembling immediately after unpacking.

Pipes

P1120370V2

Metal thin-walled Ø 28mm pipes coated with synthetic resin guarantee strength and premium appearance.
The pipes are surprisingly non-slip during installation thanks to the resin they are coated with.
You will appreciate that they do not get cold in the hand and are not heavy.

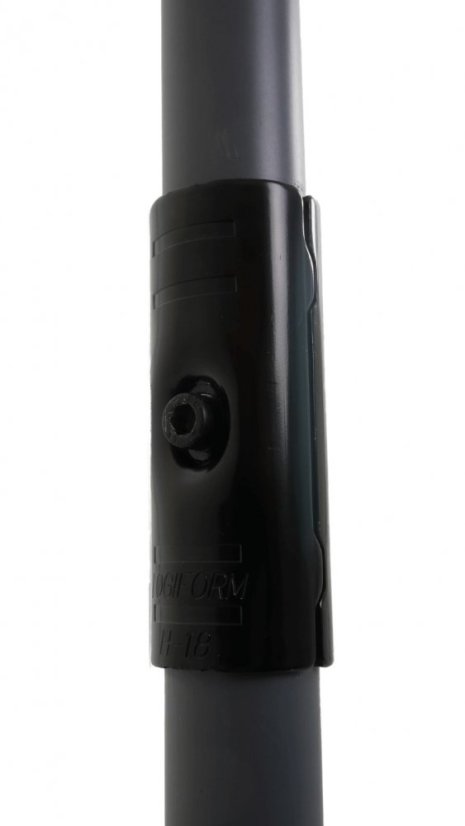

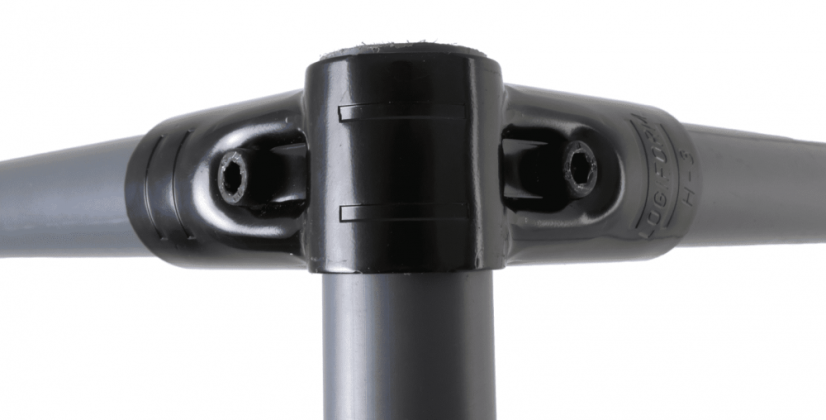

Pipe coupling

P1120351-lThe couplings have excellent workmanship.
They are black color and fit perfectly with the pipes, so assembly of the whole construction is very simple and can be done by one person without help.
The bolts and nuts are color-matched to the couplings.

Unusable without acoustic blankets

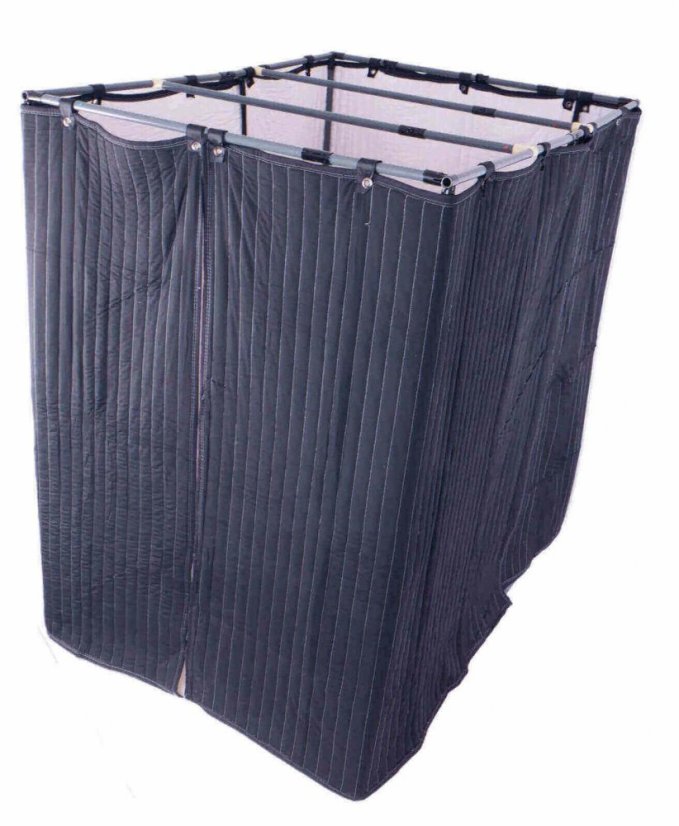

booth-without-roof-555Dear customer, please note that this product is just a bare frame without Sound blankets.
We recommend purchasing the Sound blanket's (producer's choice) model SB-VG in number of four pieces for perimeter walls.
This blanket is designed specifically for DIY vocal booths & sound booths.





Don't forget the roof

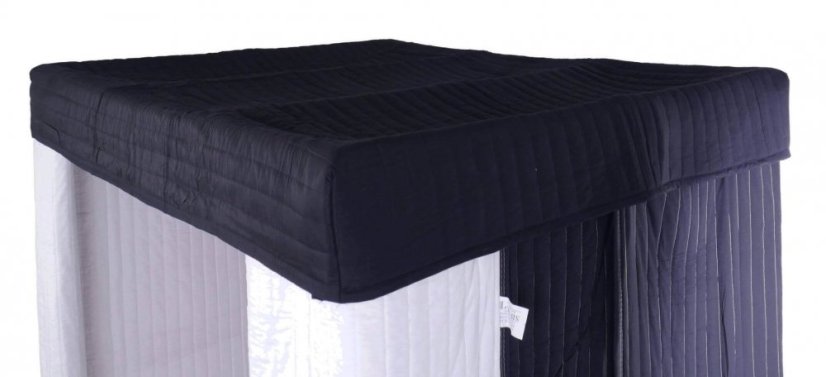

booth-roof-01To achieve perfect acoustics inside the sound booth, you need to cover the top.
For this, only one VB73-G sound blanket will do the trick.



More headroom

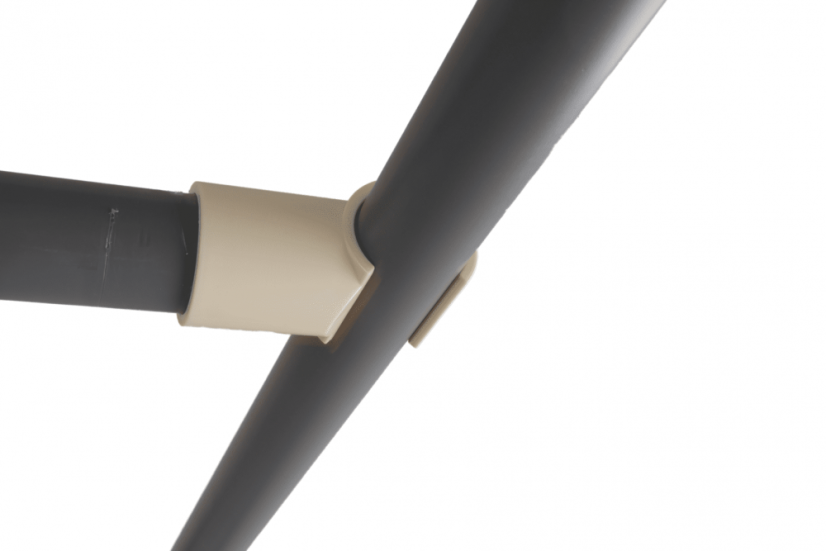

Vocal booth - premium (9)To keep the vocal booth roof from falling in, we've added a brace to the top of the frame that you connect with metal coupling. The sound blanket on the top is thus sufficiently supported and you have more headroom.

Soundproofing vs. Sound absorption

100_spb63-newThe structure fitted with the recommended blankets absorbs sound.
This creates the ideal acoustic conditions inside the vocal booth for your recording.
That doesn't mean you wouldn't be heard, the sound blankets absorb a lot of sound, but they are not "soundproof", so some of your voice or music instrument will be heard outside od sound booth

If you need a soundproof Vocal booth, you can find here: Mobile SoundProof Sound Booth - Solo (SPB63)

Technical specifications

  • Weight: 19 kg
  • Dimensions: 202x145x195 cm (HxWxD)
  • Material Pipes: Thin-walled steel Ø 28 mm (surface coated with synthetic resin)
  • Material Couplings: 29x metal
  • Pipes color: Grey
  • Couplings color: 29x black



Package contents

  •  15x -thin walled pipe  100 cm
  •   2x - thin walled pipe    95 cm
  •   4x - thin walled pipe    82 cm
  •   5x - thin walled pipe    32 cm

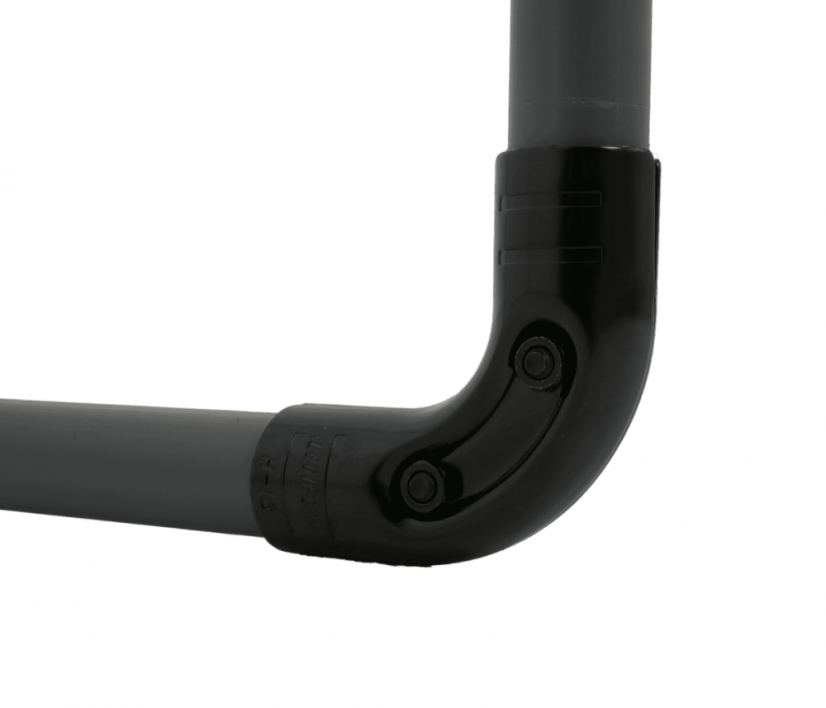

  •   12x - "T" corner coupling
  •   8x - „L“ corner coupling
  •   26x - „I“ coupling
  •   4x - hook coupling
  •   1x - Hex key
