SPB63D, 200x100x200cm, Double wall mobile sound proof Vocal Booth

You will no longer be disturbed by ambient noise or disturb your neighbours

You don't want the neighbours to be forced to listen to 2 hours of your exercise? Or have they even complained about you and now you are uncomfortable exercising at home?
Or you want recording your VoiceOver and you can't because child of your neighbours are playing all day.
Luckily for you, there is a solution! > WATCH THE VIDEO BELOW <

Testimonial of acoustic material used, inside this SPB soundproof VocalBooth

Since I have been using your acoustic blankets, the sound is much better than using the Whisper Room (a brand of soundproof acoustic booth that costs thousands of dollars). Acoustic blankets provide the clearest professional sound possible. The noise level in the studio is now only around -73 dB and thanks to VocalBoothToGo I absolutely do not need to equalize the sound any further. I don't have a box sound like the Whisper Room and VicBooth users have in their recordings, but a nice thick and warm sound.

I have recommended you to several of my friends who are having problems with their professional acoustic booths to try acoustic blankets.

Booth soundproofing: measured noise reduction

The SPB33D booth (double-layer version) was measured by Riverbank Acoustical Laboratories on 13 November 2019 using the ASTM E596 method, report RAL-NR19-003. The complete assembled booth was measured, including the door and window, not the material alone. The result is NIC 29, a single-number rating according to ASTM E413.

For comparison with European standards, we calculated a weighted rating from the measured values using the EN ISO 717-1 procedure: 28 dB (C = −1; C_tr = −7). It is a calculation from values measured by the ASTM E596 method, not a measurement according to EN ISO 11957.

The booth values are not directly comparable with the R_w of panels or materials: the booth is a whole, and the door, gaps and window also decide the result. The SPB33 booth was measured. The SPB63 and SPB66 booths have the same wall construction and the same interior panels. The actual sound reduction also depends on how the booth is assembled and how well the door is sealed.

Download: booth noise reduction sheet · detailed sheet with an excerpt from the report. The full results by one-third octave band are in the article Certificate – booth noise reduction SPB33D.

Acoustics inside the booth: αw 0.75

The interior panels are made of deNoise 1300 acoustic material in a single layer. The laboratory measurement of the material (Riverbank A12-119, EN ISO 11654) gave αw = 0.75. The panels absorb sound inside the booth, which reduces echo. The soundproofing is provided by the MLV and felt walls.

Details and the full report: Certificate αw deNoise 1300.

Who the booth is suitable for

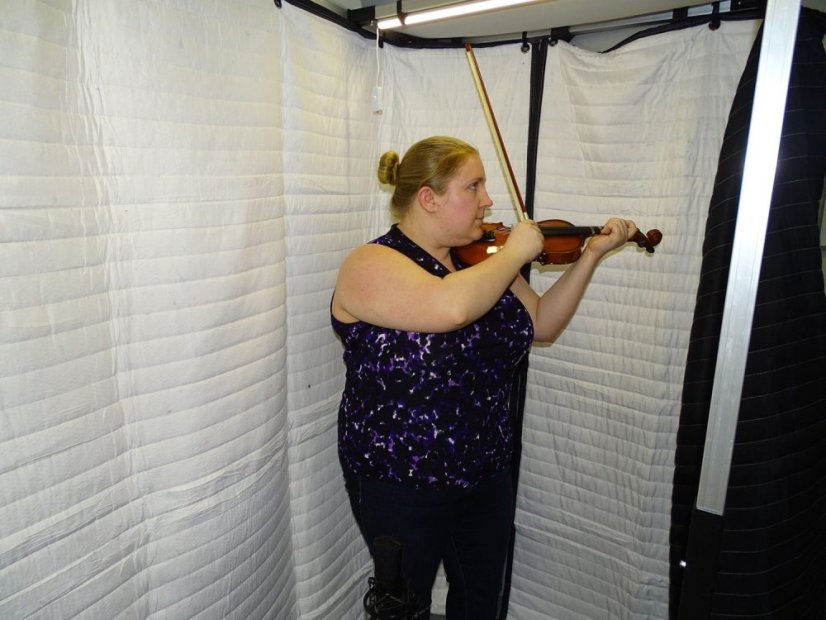

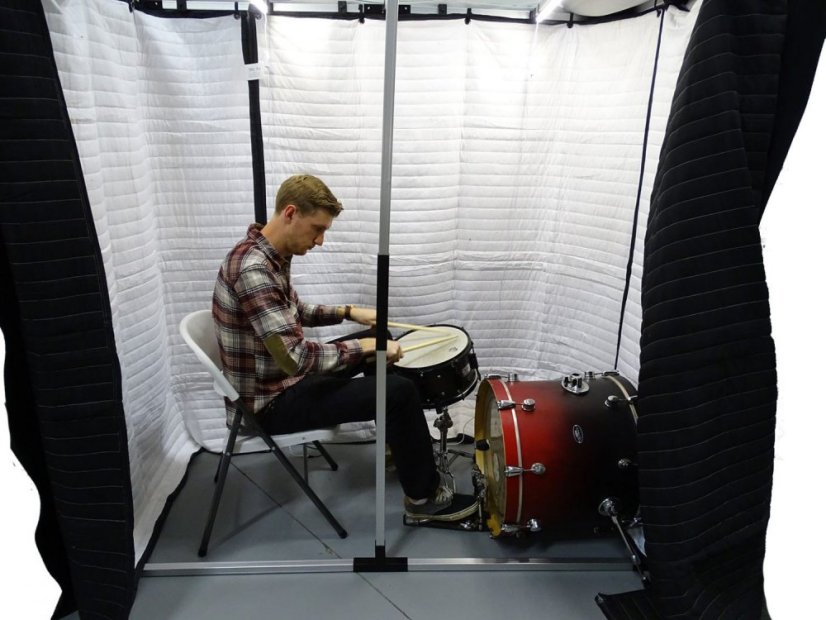

SPB63D is a mobile booth for voice and audiobook recording, voice-over, singing, playing musical instruments and audiometric testing at home or in an office. After disassembly, the panels roll up into carry bags and the booth fits into a passenger car.

Soundproofing vocal booth panel filling (version with two layers):

Each soundproofing panel in the double-layer version of the soundproofing vocal booth is filled with 1x 3mm thick MLV layer and 1x 2mm thick MLV layer which forms the main effective element to prevent noise penetration. The second part of the filling is 2x 10mm thick layer of felt which improves the sound quality inside and also contributes to the soundproofing properties of the cabin.

Basic product description

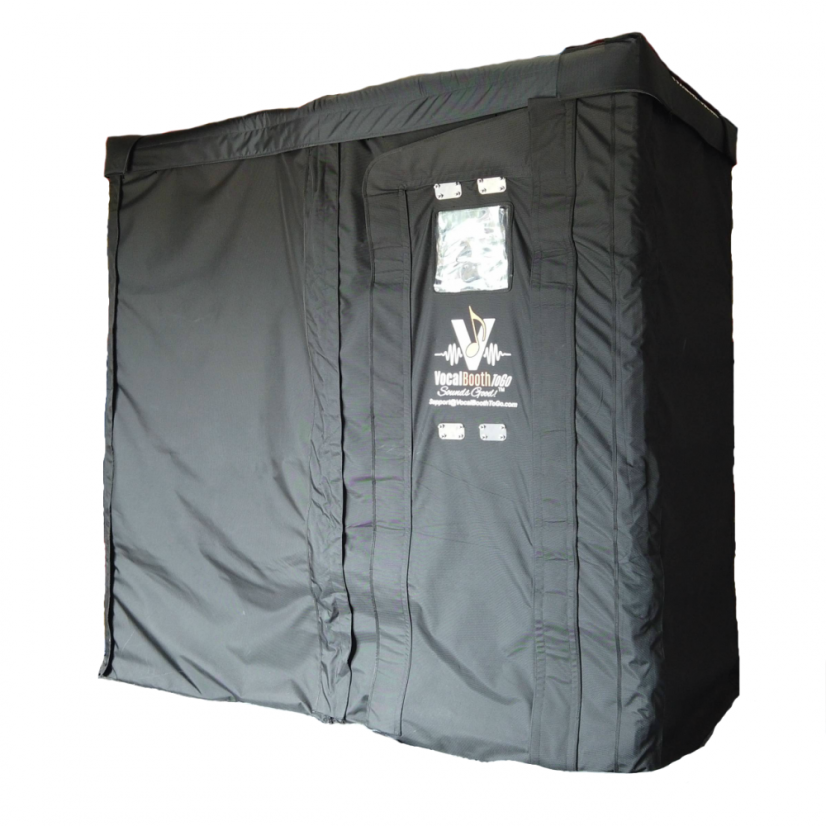

200x100x200cm Enhanced mobile Sound Proof Booth – Double wall – booth noise reduction NIC 29 (Riverbank laboratory).

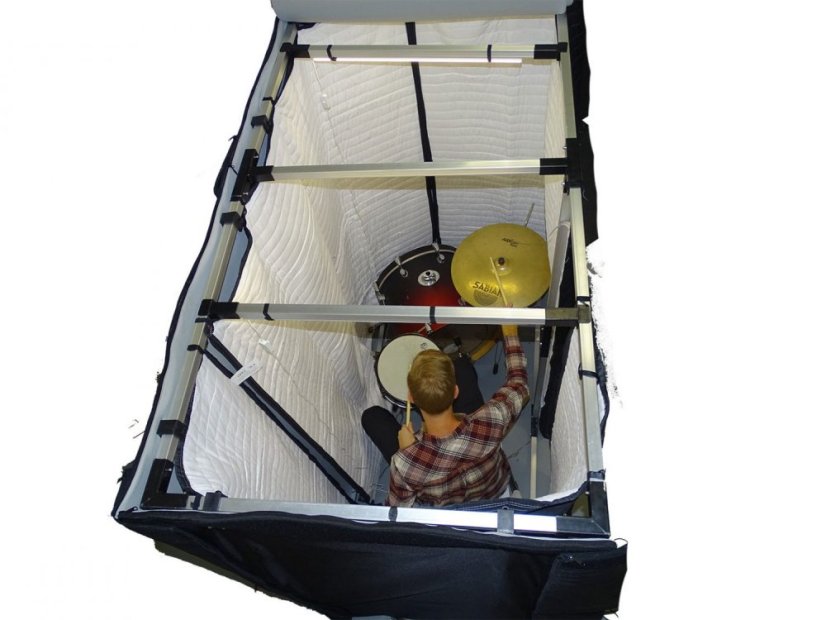

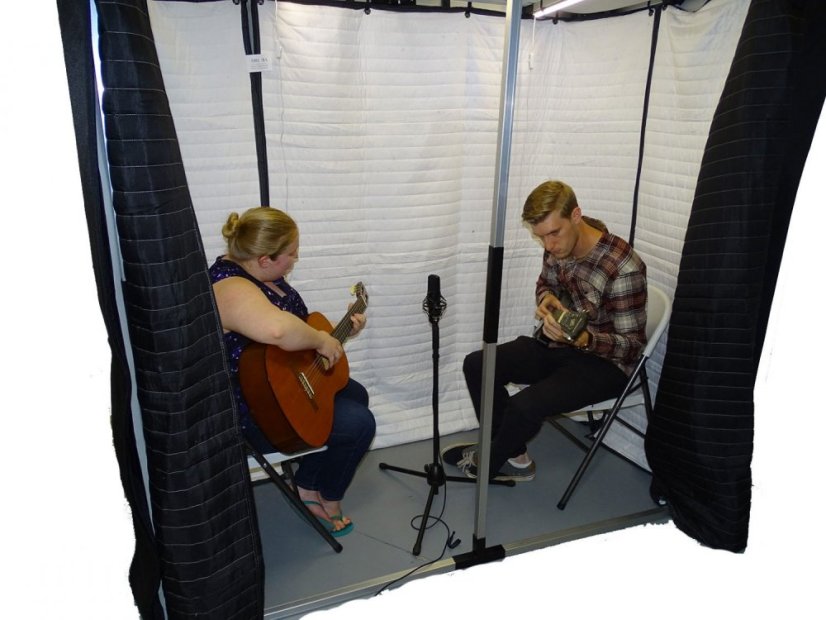

The booth is able to comfortably fit two people with their equipment, for practicing singing, musical instruments, voice over recordings, audiometry testing, and much more!
The Enhanced Sound Isolation Booth, SPB63D measures approximately 200cm tall x 100cm wide x 200cm long and can be transported in a passenger car with an assembly time of a little over 45 minutes – assembly always requires two people! The small and sleek design makes the Enhanced Sound Booth more portable and easily stored.

Features.
Double Soundproof panels and sound absorption panels can be rolled up and stored in the provided transport bags.
Light weight aluminum frame is easy to assemble and disassemble without need for any tools or screws etc.
All poles are of the same size to make assembly easy. Frame can fit in the same bags with the panels.

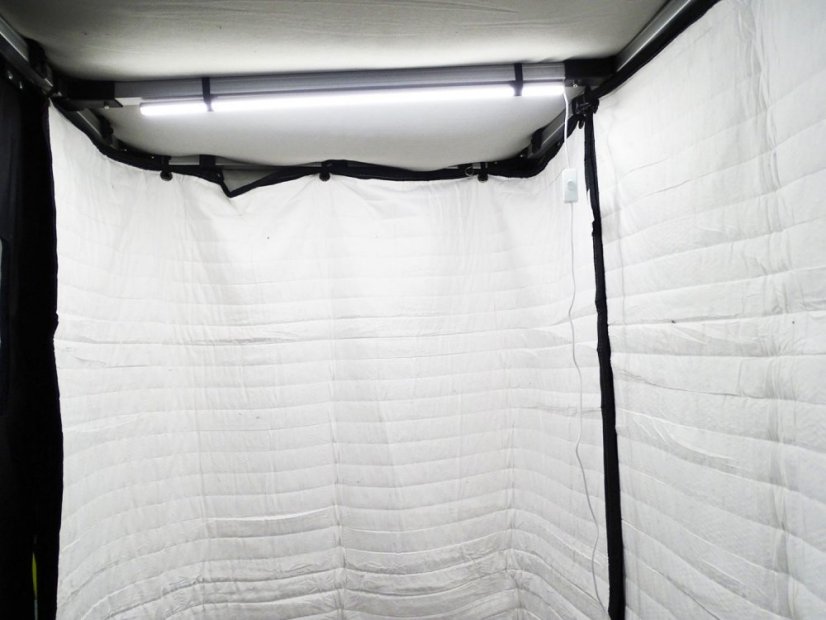

(2) Included LED light bars provide sufficient illumination and no noise or extra heat.

Booth has a door panel with Zipper closure and a Vinyl window. Internal sound absorbing panels do not have a window built-in to reduce the number of reflective surfaces.

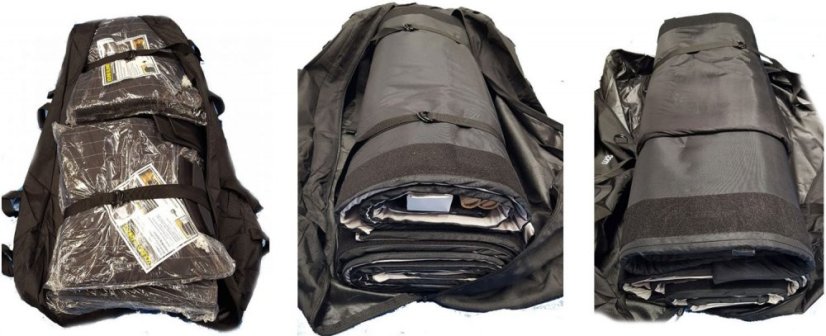

This vocal booth is intuitive to set-up and easy to take down and transport. When the booth is disassembled and packed into seven bags the weight can be distributed evenly with the weight per bag of approximately 37Kg. Full bag size is approximately 100cm long x 40cm wide and tall.
The bags are specially designed with additional secure straps inside and strong zipper to keep sound panels together. Since the bags are designed to hold considerable weight, we also provided 4 handles, so two people can carry it.

Capacity.

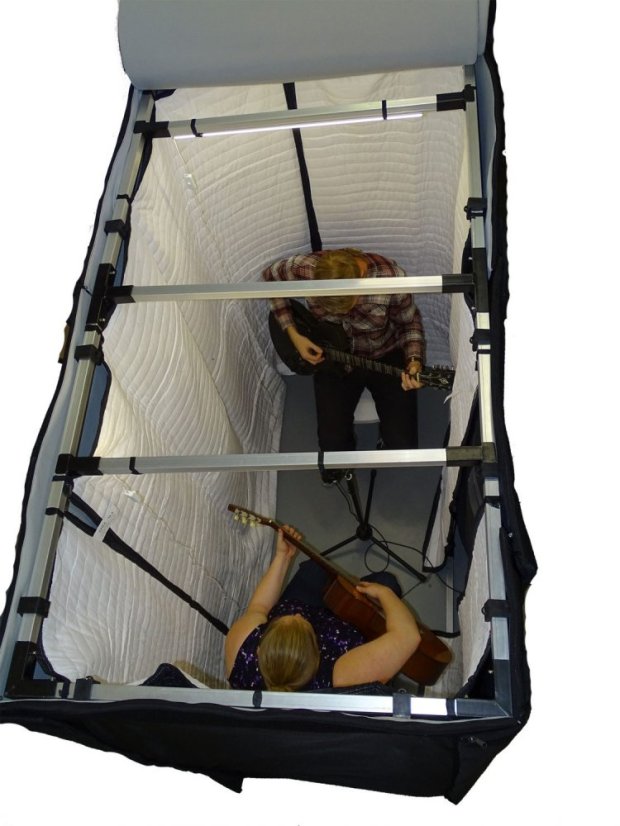

The SPB63D is large enough for two people, or for one person with a desk.

Efficiency.
Noise reduction of the complete booth: NIC 29 (measured in the Riverbank laboratory, details above). Interior panels made of deNoise 1300 material: αw = 0.75.

Specifications.
Soundproofing walls are made out of specially constructed multilayered soundproof panels containing Limp Mass Membrane. In assembled state outer sound proof walls are joined together with Special corner panels with Velcro. This SPB63D design has a flat roof, to comfortably fit into an apartment with average ceiling height.

( NOTE: Limp Mass property of the wall panels increase soundproofing capacity compare to the material of the same weight but in rigid form).

The interior sound-absorbing panels are made from VocalBoothToGo acoustic blankets (deNoise 1300 material), which improve the acoustics inside the booth (αw = 0.75).

• Assembled Size: 200cm long x 100cm wide x 200cm high
• Booth noise reduction, NIC (ASTM E413) = 29 (measured on the SPB33 booth)
• Weighted rating according to EN ISO 717-1 (calculated from the measured values): 28 dB (C = −1; C_tr = −7)
• Interior sound-absorbing panels (deNoise 1300, single layer): αw (EN ISO 11654) = 0.75
• Total Weight = 323Kg
• Frame Aluminum. Connectors steel.
• 7x Black Carry/Storage Bags
• 2x LED Light Bars
• 4x 2,5cm thick Decoupling Foam Floor Mats

Assembly instructions

Click here to view the assembly instructions…
